Major version upgrade

StackGres provides an easy way to perform a Postgres Major version upgrade, e.g, from 15.6 to 16.2. It provides two different ways to perform a major version upgrade, using the Web Console or by using the Kubernetes API through the kubectl CLI.

The process is meant to be straightforward, however, you need to perform some previous checks to guarantee that the process will complete successfully.

  1. Available disk space depending if you will use hard links or not.
  2. If you are using extensions, check if they are compiled for the Postgres version you’re planning to migrate to. (Extensions)
  3. Make sure you have an up to date backup.
  4. Make sure you have SGPostgresConfig for the postgres version you’re planning to migrate to.
  5. Performed the upgrade in a test environment.

Upgrade Process Flow

The major version upgrade operation follows these steps:

  1. Store the status of the operation in the SGCluster status
  2. Disable sync replication mode (if enabled)
  3. Perform a CHECKPOINT
  4. Downscale the cluster to only the primary instance
  5. Change the version in the SGCluster
  6. Restart (re-create) the primary Pod with the major-version-upgrade init container that runs the pg_upgrade command
  7. If any container fails (configurable with maxErrorsAfterUpgrade field), a rollback is performed: the SGCluster is restored to its previous status and the operation terminates with an error
  8. If no container fails and the Pod becomes ready, the operation is considered valid (pg_upgrade was successful and Patroni was able to start Postgres). The old data is then removed.
  9. Upscale the cluster to the previous number of instances
  10. Re-enable the previous sync replication mode (if different from async)
  11. Remove the operation status from the SGCluster status

Important notes:

  • Rollback is not possible when link field is set to true
  • When check field is set to true, the data is never touched, just checked, and the cluster is brought back to its previous state after the operation completes
  • If your filesystem supports it, use clone to greatly reduce the duration of the major version upgrade operation and allow a functional rollback in case of error by using file cloning (reflinks)

Major version upgrade

In order to execute the process by using the kubectl CLI, you need to create the SGDbOps manifest. In the next example a major version upgrade from Postgres version 15.6 to 16.2 will be performed:

To execute the process create and apply the manifest with the next command:

apiVersion: stackgres.io/v1
kind: SGDbOps
metadata:
  name: my-major-version-upgrade
  namespace: default
spec:
  majorVersionUpgrade:
    check: false
    clone: false
    link: true
    postgresVersion: "16.2"
    sgPostgresConfig: postgres-16-config
  maxRetries: 0
  op: majorVersionUpgrade
  sgCluster: demo

Note: You can check all the available options here SGDbOps Major version upgrade

You can check the process log on the process pod called major-version-upgrade

kubectl logs demo-0 -c major-version-upgrade

At the end of the logs you should see something like:

...
+ read FILE
+ touch /var/lib/postgresql/upgrade/.upgrade-from-15.6-to-16.2.done
+ echo 'Major version upgrade performed'
Major version upgrade performed

Extensions and Major Version Upgrade

When upgrading with extensions, the rule of thumb is to read the documentation of each specific extension to check if there is any special procedure to follow.

Core and contrib extensions: Do not require any special treatment. They are updated to the next version together with the PostgreSQL version.

Timescaledb: It is required to:

  1. Upgrade timescaledb to the latest available version compatible with the current Postgres major version
  2. Upgrade Postgres major version
  3. Upgrade timescaledb to the latest version for the new Postgres major version

Citus: Similar requirements to timescaledb:

  1. Upgrade citus extension to the latest supported version
  2. Upgrade Postgres major version
  3. Upgrade citus extension to the latest version

Specifying Extension Versions

Some extensions allow specifying the target version in the SGDbOps:

apiVersion: stackgres.io/v1
kind: SGDbOps
metadata:
  name: major-upgrade
spec:
  sgCluster: my-cluster
  op: majorVersionUpgrade
  majorVersionUpgrade:
    postgresVersion: "17.4"
    sgPostgresConfig: postgres-17
    postgresExtensions:
    - name: pg_cron
      version: "1.6"

Important: StackGres only installs extension binaries to the specified (or latest) version. The user must execute ALTER EXTENSION ... UPDATE TO commands, including any custom procedure required by each particular extension.

Steps to perform a Major version upgrade using the Web Console.

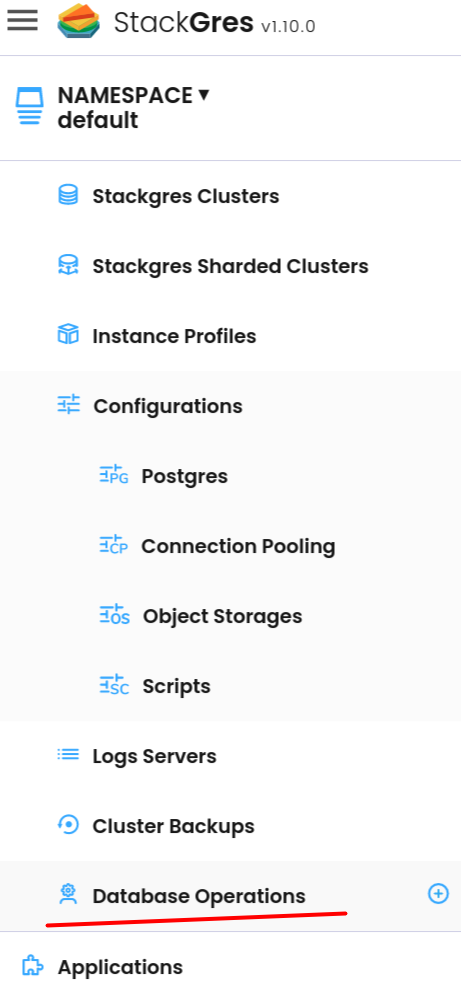

  1. Go to Database Operations

SG Menu

  1. Click over the Plus (+) button

  2. Then the Create Database Operation page will be open.

  3. Choose your target cluster

  4. Select the Major version upgrade Operation

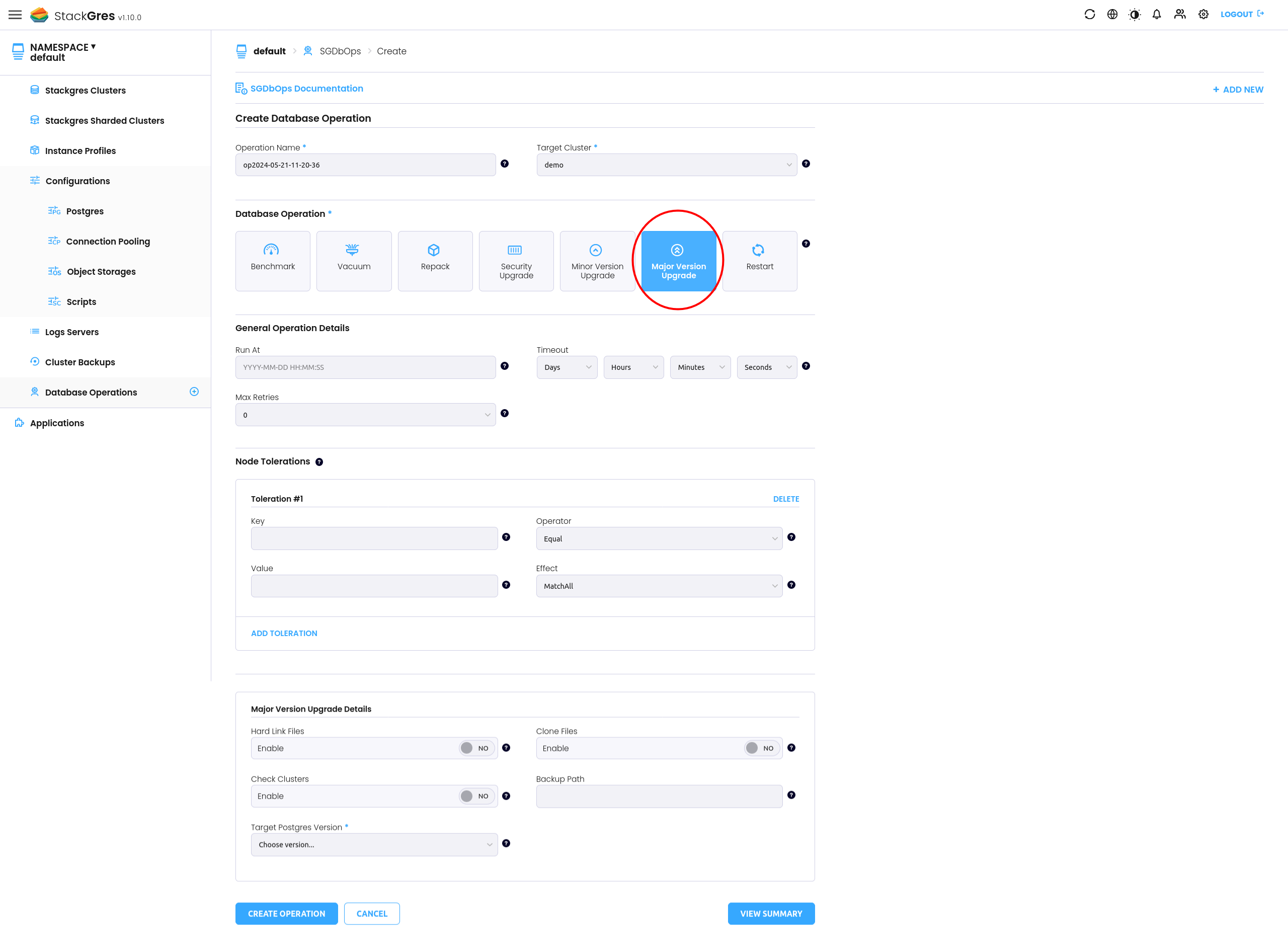

SG MJU

  1. You can set the process to be executed in a specific time, if not set the process will be executed immediately.

  2. If is required you can add the Node Tolerations.

  3. Check the options under the Major version upgrade details

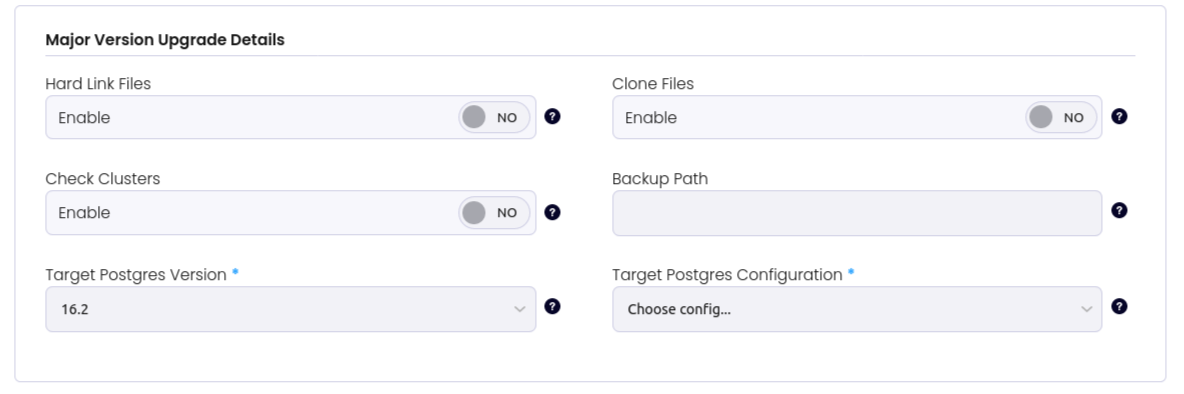

SG MJU

  • Hard link files: If true use hard links instead of copying files to the new cluster. This option is mutually exclusive with clone. Defaults to: false.

    Important: Be aware that if you use the default, all data files will be copied to a new directory, so you need to make sure you have enough disk space to perform the operation. Otherwise, you’ll run out of space.

    The main perk of copying the files is that you can roll back to the old cluster in case of a failure. Meanwhile when using hard links, once the data directory is changed there’s no roll back option.

  • Clone files: If true use efficient file cloning (also known as “reflinks” on some systems) instead of copying files to the new cluster. This can result in near-instantaneous copying of the data files, giving the speed advantages of link while leaving the old cluster untouched. This option is mutually exclusive with link. Defaults to: false.

    File cloning is only supported on some operating systems and file systems. If it is selected but not supported, the pg_upgrade run will error. At present, it is supported on Linux (kernel 4.5 or later) with Btrfs and XFS (on file systems created with reflink support), and on macOS with APFS.

  • Check Cluster: If true does some checks to see if the cluster can perform a major version upgrade without changing any data. Defaults to: false.

  • Backup path: The path where the backup is stored. If not set this field is filled up by the operator.

    When provided will indicate where the backups and WAL files will be stored.

    The path should be different from the current .spec.configurations.backups[].path value for the target SGCluster in order to avoid mixing WAL files of two distinct major versions of postgres.

  • Target Postgres version: The target postgres version that must have the same major version of the target SGCluster.

  • Target Postgres Configuration: The postgres config (SGPostgresConfig) that must have the same major version of the target postgres version.

  1. Once you select the appropriate options click on Create Operation
