Minor version upgrade

Performing a minor version upgrade is a simple process, this type of upgrade only requires to upgrade the executable files (binaries) while the server is down. Once the files were replaced the server must be restarted.

Minor releases never change the internal storage format and are always compatible with earlier and later minor releases of the same major version number. For example, version 10.1 is compatible with version 10.0 and version 10.6. Similarly, check the official Postgres documentation.

You can also perform a minor version upgrade without creating an SGDbOps by using the rollout functionality. Simply change the SGCluster.spec.postgres.version field to the target version and let the operator roll out the update based on the cluster’s update strategy. You can also set a version alias such as 16 (latest minor for major 16) or latest (latest available version) to automatically track new minor releases without manual intervention.

StackGres simplify the process to perform a minor version upgrade providing two different methods to accomplish this, using the Web Console or by the kubectl CLI.

Minor version upgrade using the kubectl CLI

In order to execute the process by using the CLI, you need to create the SGDbOps manifest. In the next example a minor version upgrade from Postgres version 16.1 to 16.2 will be performed:

To execute the process create and apply the manifest with the next command:

apiVersion: stackgres.io/v1
kind: SGDbOps
metadata:
  name: minor-v-upgrade
  namespace: default
spec:
  minorVersionUpgrade:
    method: InPlace
    postgresVersion: "16.2"
  op: minorVersionUpgrade
  sgCluster: demo

Check each specific parameter on the manifest, they are all the same that you can specify when using the Web Console.

  • op: Is the operation to be executed
  • sgCluster: The target cluster name to be upgraded
  • minorVersionUpgrade:
    • method: InPlace or ReducedImpact
    • postgresVersion: Target postgres version.

Once you apply the manifest you can check the operation status with:

❯ kubectl get sgdbops.stackgres.io minor-v-upgrade

NAME              CLUSTER   OPERATION             STATUS
minor-v-upgrade   demo      minorVersionUpgrade   OperationRunning

You can check the operation log by checking the pods logs:

❯ kubectl logs minor-v-upgrade-g7jf8

Minor version upgrade using the Web Console

StackGres already provides a Database Operation called Minor Version Upgrade

  • Go to Database Operations

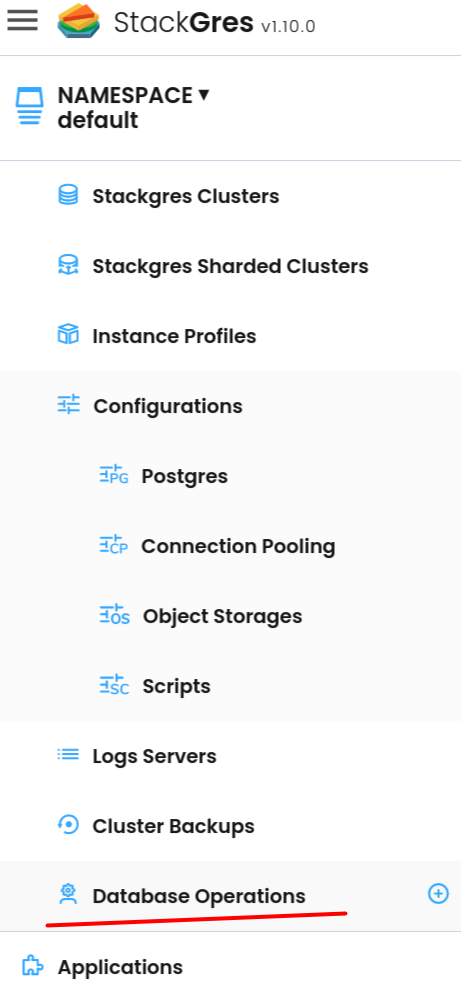

SG Menu

  • Click over the Plus (+) button

  • Then the Create Database Operation page will be open.

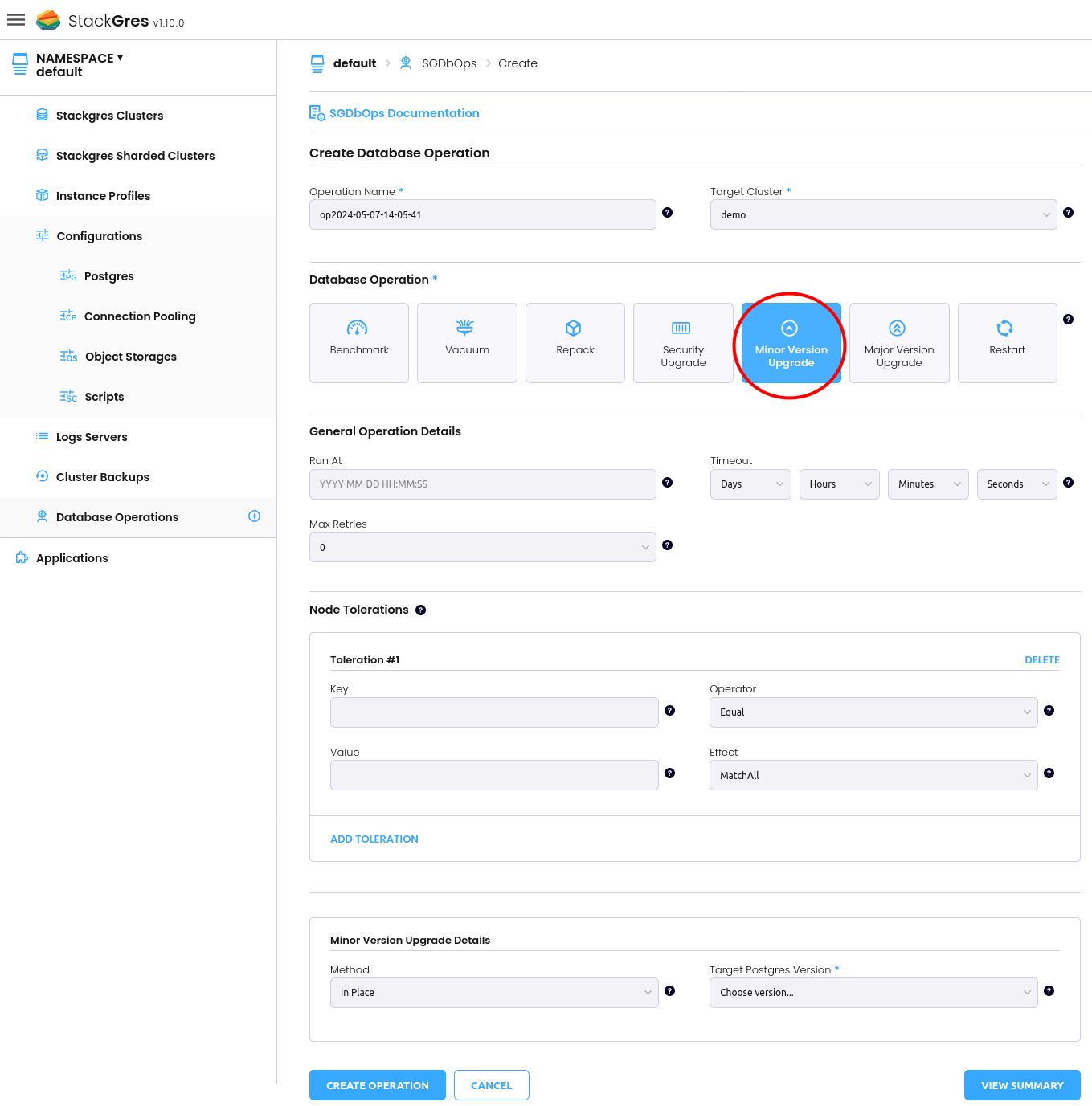

SG Minor version Upgrade

  • Choose your target cluster

  • You can set the process to be executed at a specific time, if not set the process will be executed immediately.

  • If required you can add the Node Tolerations.

  • Choose the method:

    • In place: The in-place method does not require more resources than those that are available. In case only an instance of the StackGres cluster is present this mean the service disruption will last longer so we encourage use the reduced impact restart and especially for a production environment.
    • Reduce impact: this procedure is the same as the in-place method but require additional resources in order to spawn a new updated replica that will be removed when the procedure completes.

  • Finally click on Create Operation

Process Detail

All the operations executed to perform the minor version upgrade will be shown in the Database Operation detail.

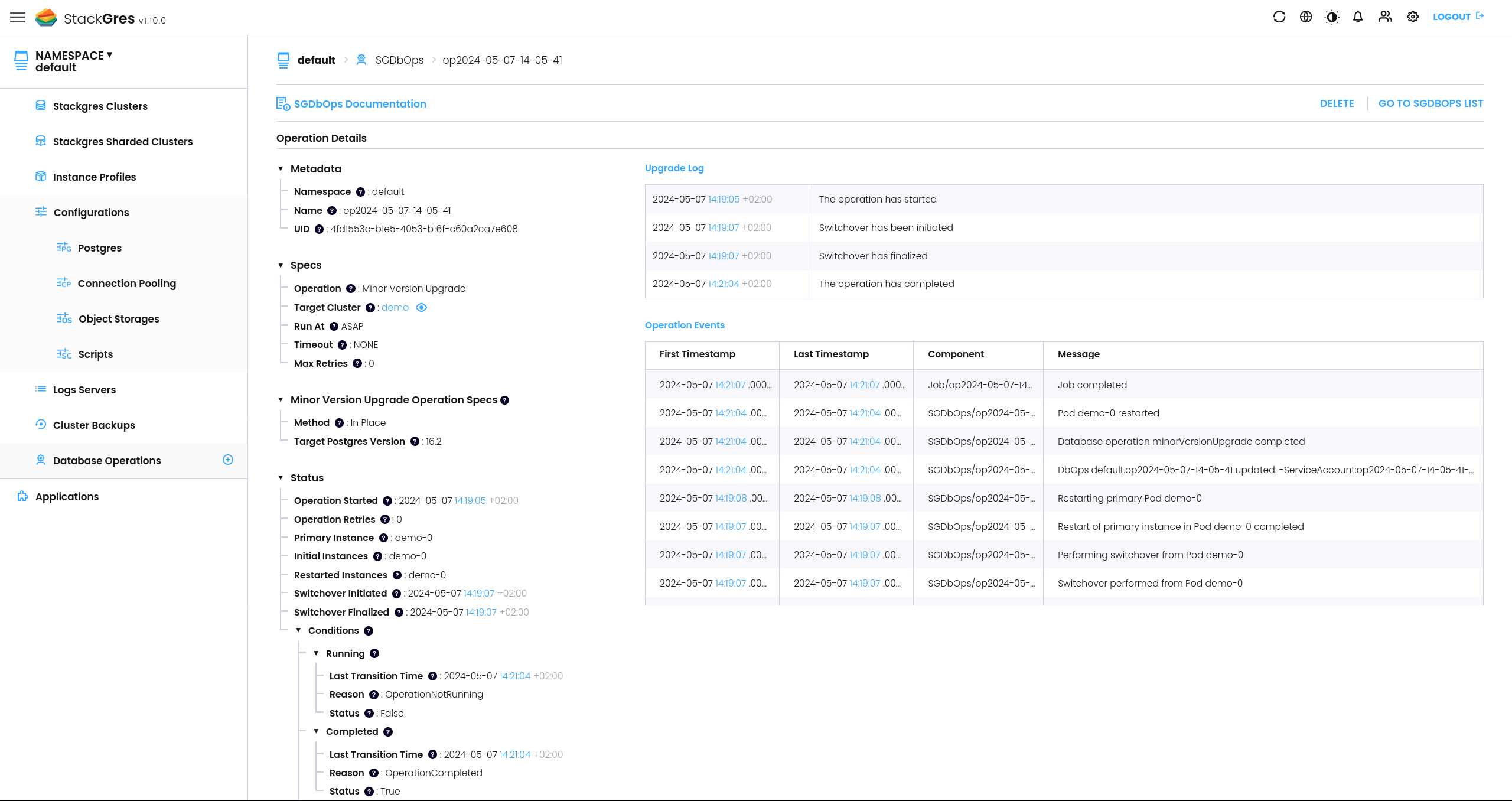

SG Minor version Upgrade log
